Bitumen Membran

Membrane is literally called the membrane or the surrounding layer. In the field of building material, the separator or selectively permeable layer is understood when the membrane is called. In the field of waterproofing, membranes are grouped according to the way waterproof materials are applied to the surface. Waterproof products can be applied in the form of a cover, in liquid form or by spraying with a pressurized system. Due to the method of application, other physical or chemical products can be used in addition to the main components in the insulation product.

Membrane is particularly adapted for use as a protective layer in regions where earthquakes can cause groundwater to impact structural strength.

Bituminous waterproofing membranes are produced by modifying bitumen (asphalt) with polymer based plastics and produced with non-wowen spun-bond polyester or glassfiber reinforcement.

Application areas of Membran

Membrane is used in buildings that are exposed to different loads and weather conditions such as bridges, viaducts, especially on the foundation, curtains, basements, gardens, terraces and roofs of buildings, in order to protect the water against adverse effects caused by water and moisture, and to provide a comfortable waterproofing to living spaces.

What is a Bitumen membrane

The product is employs asphalt or thermoplastic elastomer （styrene – butadiene block copolymer sbs）, modified asphalt impregnated base, both sides are coated with elastomer or plastic bitumen coverage layer,upper surface fine sand , mineral grains（membrane）material or coverage polyethylene film, lower surfaces fine sand or coverage from polyethylene membrane made waterproofing materials.

Usage areas Bitumen membrane

The product has good waterproof performance and anti-aging performance, and has the characteristics of not flowing at high temperature, not brittle crack at low temperature, simple construction, no pollution, long service life.It is mainly used in the industrial and civil building roofing、Bathroom、basement、pool and other waterproof moistureproof and bridge, parking lot, swimming pool, tunnel, reservoir and other buildings waterproof, moistureproof, steam separation.Impermeability and maintenance of asphalt roofing.sbs Modified asphalt waterproof rolling material is especially suitable for waterproofing of buildings in cold areas and areas with frequent structural deformation.

Bitumen Membrane Types

• Glass fiber carrier membrane

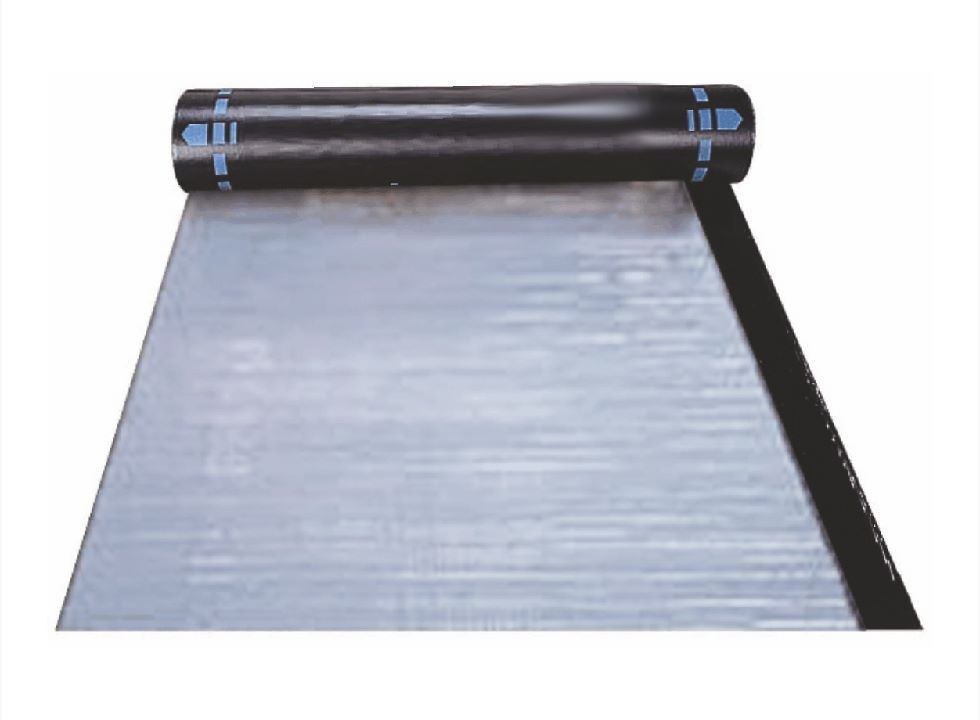

• Glass gauze carrier membrane aluminum foil membrane

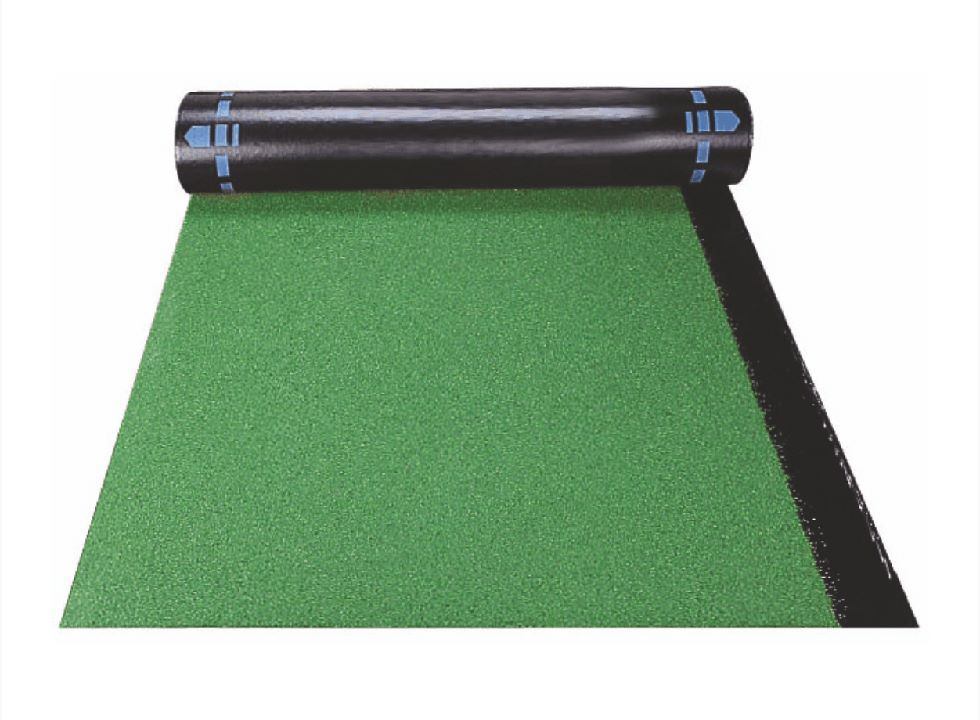

• Glass net carrier slated membrane
• Polyester felt-reinforced membrane
• Self adhesive membrane

Flat roof membranes are used in both residential and commercial roofing projects. In residential, it is used predominantly for large apartment buildings, garage roofs, and small extensions. It is also increasingly used for larger main roofs in single-family housing with modern designs that integrate flat roofs.
Most large commercial projects such as apartments, warehouses, sports facilities, schools, and hotels utilize membrane roofing on flat roofs. Most of these commercial buildings require roof access for mechanical systems or they have occupied roof terraces, making membrane roofs an ideal cost effective solution.
The two most common types of flat roof membranes are EPDM and PVC. While modified bitumen is also still used, most owners are moving away from asphalt based products due to the environmental and health hazards.

Benefits

• Mechanical resistance
• UV resistant
• Watertight

Bitumen Membrane Usage Areas

• Terrace roofs
• Fundamentals
• Hipped roofs
• Hidden stream applications
• Rain streams
• Flowerpots
• Sewage treatment plants
• Garden terrace applications
• Ponds
• Parking lots
• Water tanks
• Pressurized underground problems
• Water and steam insulation of wet places
• It is used in the insulation of retaining walls and basement walls.

For clients

• Ensure long-lasting waterproofing, whatever the local weather conditions
• Suits any environment thanks to a wide range of solutions and colours
• Weight: 6.5 kg +-%10
• Number of Grooves: 10 pcs (1 plate)
• Gutter Height: 38 mm
• Cover Area of 1 Sheet: 1.62 m2
• Number of Sheets in a Pallet: 350 pcs

For Professionals

• Ensure customer satisfaction by delivering high-quality membranes
• Answer all customers' needs with our large range (e.g.: resistance to root penetration, extensive choice of finishes and colours)
• Be operational in any situation: can be installed in any weather conditions
• Benefit from quick stock rotation: rolls can be used for numerous applications
